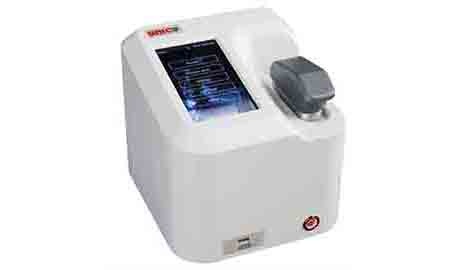

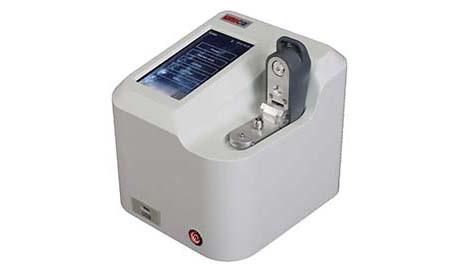

Microvolume UV-Vis Spectrophotometer

Microvolume UV-Vis SpectrophotometerUPT100 is a new full-wavelength ultra-tracespectrophotometer, which can be used todetect nucleic acids, proteins, bacteria, cells o l u t i o n s , m i c r o a r r a y s a m p l e s a n dconventional full-wavelength scanning.Products are widely used in biology, chemistry,chemical industry, medicine, pharmacy,environment, food, agriculture and otherfields. It is a necessary testing equipment forcolleges, research institutes and laboratories.


Light source: long-life xenon lamp

Detector: 2048 linear CMOS array

Wavelength range: 190-850nm

Wavelength accuracy: ±1nm

Wavelength resolution: 1.1nm (FWHM Hg 253nm)

Repeatability: <±0.5nm< p="">

Optical path: 1mm

Nucleic acid range: 3000ng/uL (DS-DNA)

Protein range: 0.01-1188mg/mL (BSA)

Sample volume: 0.5-1.5μl

Absorbance accuracy: 1% (0.76 absorbance at 350nm)

Absorbance range: 0.002-450 (equivalent to 10mm optical path)

Detection time: less than 5s

Sample platform material: stainless steel and quartz fiber

Dimensions: 175mmX190mmX180mm

Weight: 2KG
