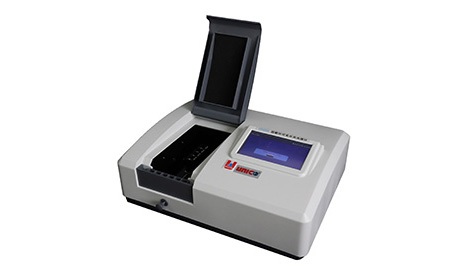

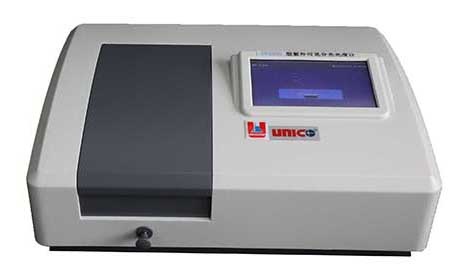

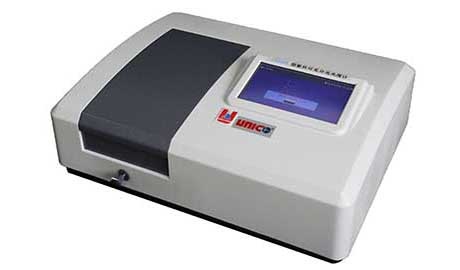

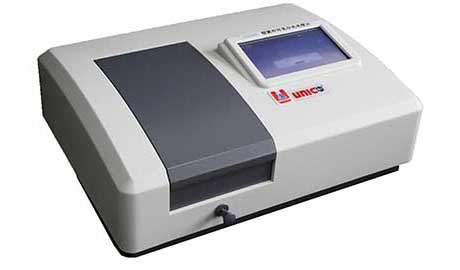

UV/VIS Spectrophotometer

The brand new UV-2355 series photometer uses a 7 inch high resolution color touch LCD screen with a large display that directly displays a variety of scanning curves and maps, allows the user to complete all measurements without the aid of a computer. Support U Disk Storage, mobile APP Sharing, Bluetooth print user-friendly.



Wavelength Range: 190-1100nm

Bandwidth:  2nm

Optical System: Single beam,gra ting                  syetem1200lines/nm

Wavelength Accuracy: ±0.8nm

Wavelength Repeatability:≤0.2nm

Wavelength display: 1nm

Photometric Range: 0-125%T,-0.097-1.999A,0-1999C(0-1999F)

Photometric Accuracy: ±0.5%T

Stray Light: <0.2%T@220nm and 360nm

Stability: ±0.002A/hr@500nm

Standard Cell Holder:4-position 10mm cell changer

Sample Compartment :Accommodates 100mm path length cuvette with optional holder

Display : 7 Inch touch screen

Output: USB

Software :Optional

Light Source :Tungeten Halogen and Deuterium Lamp

Power Requirements:220V/240V switchable

Instrument Dimensions: 485mm(W)×365mm(D)×220mm(H)

Instrument Weight: 14.0kg
